INA GAL30-UK

INA GAL30-UK Rod end joint

Also known as : GAL30-UK

Inside Diameter: 30 mm
Outside Diameter: 73 mm
Width: 146.5 mm
Basic dynamic load rating: 65.9 kN
Basic static load rating: 139 kN

INA GAL30-UK

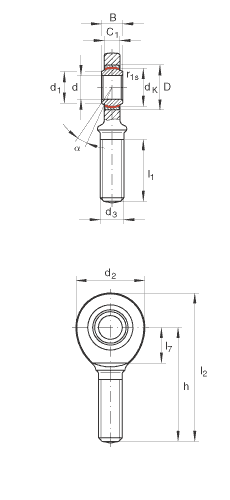

INA GAL30-UK details

Number	GAL30-UK
Type	Rod ends with external thread, maintenance-free, to DIN ISO 12 240-4, left hand thread
d	30 mm	Tolerance: 0/-0,01
d₂	73 mm
l₂	146,5 mm
B	22 mm	Tolerance: 0/-0,12
C₁	19 mm
D	47 mm
d₁	34,2 mm
d₃	M30x2
d_K	40,7 mm
h	110 mm
l₁	65 mm
l₇	37 mm
r_{1s min}	0,6 mm	Chamfer dimension
α	6 °
m	0,89 kg	Mass
C_r	65900 N	Basic dynamic load rating, radial
C_0r	139000 N	Basic static load rating, radial Basic load rating of housing
