INA GAR17-DO Rod end joint
Also known as : GAR17-DO
- Inside Diameter: 17 mm
- Outside Diameter: 46 mm
- Width: 92 mm
- Basic dynamic load rating: 21.3 kN
- Basic static load rating: 56.5 kN
INA GAR17-DO
INA GAR17-DO details

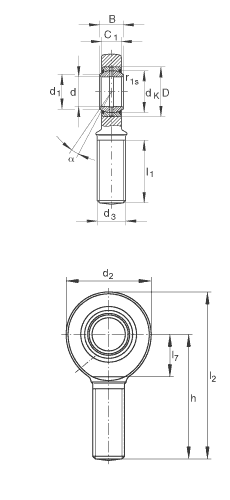

| Number | GAR17-DO | |
|---|---|---|
| Type | Rod ends with external thread, requiring maintenance, to DIN ISO 12 240-4, right hand thread | |
| d | 17 mm | Tolerance: 0/-0,008 |
| d2 | 46 mm | |
| l2 | 92 mm | |
| B | 14 mm | Tolerance: 0/-0,12 |
| C1 | 11 mm | |
| D | 30 mm | |
| d1 | 20,7 mm | |
| d3 | M16 | |
| dK | 25 mm | |
| h | 69 mm | |
| l1 | 36 mm | |
| l7 | 23 mm | |
| r1s min | 0,3 mm | Chamfer dimension |
| α | 10 ° | |
| m | 0,19 kg | Mass |
| Cr | 21300 N | Basic dynamic load rating, radial |
| C0r | 56500 N | Basic static load rating, radial Basic load rating of housing |
