INA GAL15-DO

INA GAL15-DO Rod end joint

Also known as : GAL15-DO

Inside Diameter: 15 mm
Outside Diameter: 40 mm
Width: 83 mm
Basic dynamic load rating: 16.9 kN
Basic static load rating: 41.6 kN

INA GAL15-DO

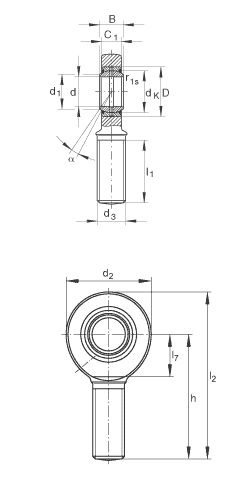

INA GAL15-DO details

Number	GAL15-DO
Type	Rod ends with external thread, requiring maintenance, to DIN ISO 12 240-4, left hand thread
d	15 mm	Tolerance: 0/-0,008
d₂	40 mm
l₂	83 mm
B	12 mm	Tolerance: 0/-0,12
C₁	10 mm
D	26 mm
d₁	18,4 mm
d₃	M14
d_K	22 mm
h	63 mm
l₁	34 mm
l₇	20 mm
r_{1s min}	0,3 mm	Chamfer dimension
α	8 °
m	0,14 kg	Mass
C_r	16900 N	Basic dynamic load rating, radial
C_0r	41600 N	Basic static load rating, radial Basic load rating of housing
