INA GIR12-DO Rod end joint
Also known as : GIR12-DO
- Inside Diameter: 12 mm
- Outside Diameter: 34 mm
- Width: 67 mm
- Basic dynamic load rating: 10.8 kN
- Basic static load rating: 30.4 kN
INA GIR12-DO

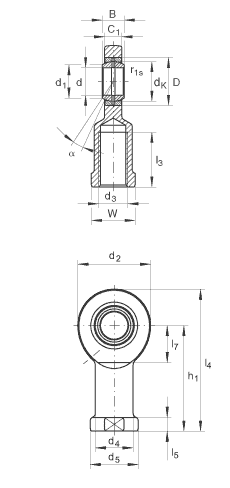

INA GIR12-DO details
| Number | GIR12-DO | |
|---|---|---|
| Type | Rod ends with internal thread, requiring maintenance, to DIN ISO 12 240-4, right hand thread | |
| d | 12 mm | Tolerance: 0/-0,008 |
| d2 | 34 mm | |
| l4 | 67 mm | |
| B | 10 mm | Tolerance: 0/-0,12 |
| C1 | 8 mm | |
| D | 22 mm | |
| d1 | 14,9 mm | |
| d3 | M12 | |
| d4 | 17,5 mm | |
| d5 | 22 mm | |
| dK | 18 mm | |
| h1 | 50 mm | |
| l3 | 23 mm | |
| l5 | 6,5 mm | |
| l7 | 18 mm | |
| r1s min | 0,3 mm | Chamfer dimension |
| W | 19 mm | |
| α | 11 ° | |
| m | 0,096 kg | Mass |
| Cr | 10800 N | Basic dynamic load rating, radial |
| C0r | 30400 N | Basic static load rating, radial Basic load rating of housing |
