IKO POS6EC Rod end joint
Also known as : POS6EC
- Inside Diameter: 6 mm
- Outside Diameter: 18 mm
- Width: 45 mm
- Basic dynamic load rating: 8.41 kN
- Basic static load rating: 4.73 kN
IKO POS6EC

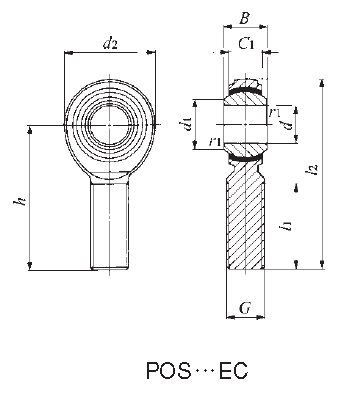

IKO POS6EC details
| Identification number | POS6EC |
|---|---|
| Type | Maintenance-free type PILLOBALL Rod ends |
| Mass | 19 g |
| d | 6 mm |
| Thread G | M6X1 |
| d2 | 18 mm |
| C1 | 6.75 mm |
| B | 9 mm |
| d1 | 9 mm |
| l2 | 45 mm |
| h | 36 mm |
| l1 | 22 mm |
| r1s min | 0.2 mm |
| Ball dia. | 12.7 mm |
| Dynamic load capacity | 8.41 kN |
| Static load capacity | 8.41 kN |
IKO POS6EC bearing cross reference
GAL40-UK-2RS
6 mmx 18 mmx45 mm
GAR70-DO-2RS
6 mmx 18 mmx45 mm
GAR40-DO-2RS
6 mmx 18 mmx45 mm
GAL45-DO-2RS
6 mmx 18 mmx45 mm
GAL35-DO-2RS
6 mmx 18 mmx45 mm
GAR17-UK
6 mmx 18 mmx45 mm
GAR12-UK
6 mmx 18 mmx45 mm
GAR6-UK
6 mmx 18 mmx45 mm
GAL30-UK
6 mmx 18 mmx45 mm
GAL12-UK
6 mmx 18 mmx45 mm
GAL6-UK
6 mmx 18 mmx45 mm
