IKO POS22

IKO POS22 Rod end joint

Also known as : POS22

Inside Diameter: 22 mm
Outside Diameter: 50 mm
Width: 109 mm
Basic dynamic load rating: 37.4 kN
Basic static load rating: 41.7 kN

IKO POS22

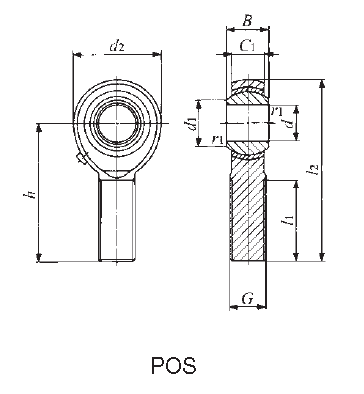

IKO POS22 details

Identification number	POS22
Type	Lubrication type PILLOBALL Rod ends
Mass	435 g
d	22 mm
Thread G	M22X1.5
d2	50 mm
C1	20 mm
B	28 mm
d1	25.8 mm
l2	109 mm
h	84 mm
l1	51 mm
r_{1s min}	0.2 mm
Ball dia.	38.1 mm
Dynamic load capacity	37.4 kN
Static load capacity	37.4 kN

IKO POS22 bearing cross reference

GAL40-UK-2RS
22 mmx 50 mmx109 mm

GAR70-DO-2RS
22 mmx 50 mmx109 mm

GAR40-DO-2RS
22 mmx 50 mmx109 mm

GAL45-DO-2RS
22 mmx 50 mmx109 mm

GAL35-DO-2RS
22 mmx 50 mmx109 mm

GAR17-UK
22 mmx 50 mmx109 mm

GAR12-UK
22 mmx 50 mmx109 mm

GAR6-UK
22 mmx 50 mmx109 mm

GAL30-UK
22 mmx 50 mmx109 mm

GAL12-UK
22 mmx 50 mmx109 mm

GAL6-UK
22 mmx 50 mmx109 mm

GAR25-DO
22 mmx 50 mmx109 mm
