IKO PHSA6 Rod end joint
Also known as : PHSA6
- Inside Diameter: 6 mm
- Outside Diameter: 19.5 mm
- Width: 39.7 mm
- Basic dynamic load rating: 6.76 kN
- Basic static load rating: 0 kN
IKO PHSA6

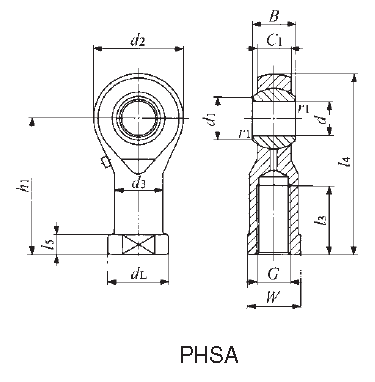

IKO PHSA6 details
| Identification number | PHSA6 |
|---|---|
| Type | Lubrication type PILLOBALL Rod ends |
| Mass | 25 g |
| d | 6 mm |
| Thread G | M6X1 |
| d2 | 19.5 mm |
| C1 | 6.75 mm |
| B | 9 mm |
| d1 | 9 mm |
| l4 | 39.7 mm |
| h1 | 30 mm |
| l3 | 16 mm |
| l5 | 5 mm |
| W | 11 mm |
| d3 | 10 mm |
| dL | 13 mm |
| r1s min | 0.2 mm |
| Ball dia. | 12.7 mm |
| Dynamic load capacity | 6.76 kN |
