SKF SA45ES-2RS Rod end joint
Also known as : SA45ES-2RS, GAR45-DO-2RS
- Inside Diameter: 45 mm
- Outside Diameter: 104 mm
- Width: 219 mm
- Basic dynamic load rating: 127 kN
- Basic static load rating: 200 kN
SKF SA45ES-2RS

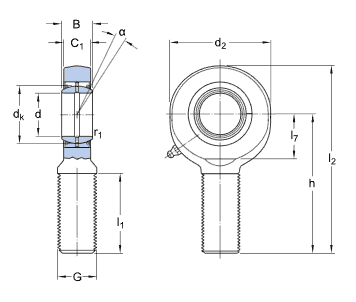

SKF SA45ES-2RS details
| number | SA45ES-2RS | |
|---|---|---|
| Type | Rod ends with a male thread | |
| d | 45 mm | |
| d2 max. | 104 mm | |
| B | 32 mm | |
| G | M 45x3 | |
| C1 max. | 28 mm | |
| h | 165 mm | |
| α | 7 ° | |
| dk | 60 mm | |
| l1 min. | 95 mm | |
| l2 max. | 219 mm | |
| l7 min. | 50 mm | |
| r1 min. | 0.6 mm | |
| Calculation data | ||
| Basic dynamic load rating C | 127 kN | |
| Basic static load rating C0 | 200 kN | |
| Specific dynamic load factor K | 100 N/mm² | |
| Material constant KM | 330 | |
| Mass | 2.55 kg | |
