FAG 30/5-B-2Z-TVH

FAG 30/5-B-2Z-TVH Angular contact ball bearings

Also known as : 30/5-B-2Z-TVH

Inside Diameter: 5 mm
Outside Diameter: 14 mm
Width: 7 mm
Basic dynamic load rating: 1.78 kN
Basic static load rating: 0.94 kN

FAG 30/5-B-2Z-TVH

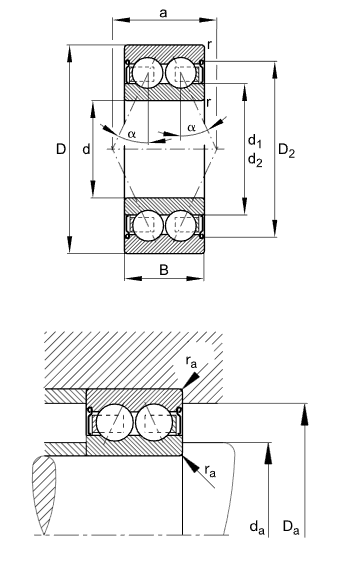

FAG 30/5-B-2Z-TVH details

Number	30/5-B-2Z-TVH
Type	Angular contact ball bearings double row, gap seals on both sides, contact angle α = 25°
d	5mm
D	14mm
B	7mm
a	6,9mm
D₂	12,7mm
D_{a max}	12,6mm
d₂	8,5mm
d_{a min}	6,4mm
r_{a max}	0,2mm
r_min	0,2mm
α	25°	Contact angle
m	0,006kg	Mass
C_r	1780N	Basic dynamic load rating, radial
C_0r	940N	Basic static load rating, radial
C_ur	47,5N	Fatigue limit load, radial
n_G	380001/min	Limiting speed
n_ϑr	315001/min	Reference speed
