FAG 3217-B-2RS-TVH Angular contact ball bearings
Also known as : 3217-B-2RS-TVH
- Inside Diameter: 85 mm
- Outside Diameter: 150 mm
- Width: 49.2 mm
- Basic dynamic load rating: 135 kN
- Basic static load rating: 127 kN
FAG 3217-B-2RS-TVH
FAG 3217-B-2RS-TVH details

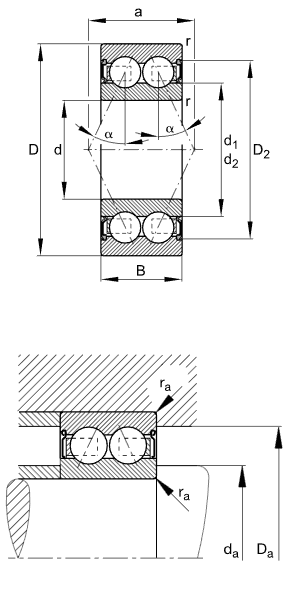

| Number | 3217-B-2RS-TVH | |
|---|---|---|
| Type | Angular contact ball bearings main dimensions to DIN 628-3, double row, lip seals on both sides, contact angle α = 25° | |
| d | 85mm | |
| D | 150mm | |
| B | 49,2mm | |
| a | 75,9mm | |
| D2 | 135,1mm | |
| Da max | 139mm | |
| d2 | 102,3mm | |
| da min | 96mm | |
| ra max | 2mm | |
| rmin | 2mm | |
| α | 25° | Contact angle |
| m | 3,3kg | Mass |
| Cr | 135000N | Basic dynamic load rating, radial |
| C0r | 127000N | Basic static load rating, radial |
| Cur | 5900N | Fatigue limit load, radial |
| nG | 26001/min | Limiting speed |
