FAG 3801-B-2RS-TVH Angular contact ball bearings
Also known as : 3801-B-2RS-TVH
- Inside Diameter: 12 mm
- Outside Diameter: 21 mm
- Width: 7 mm
- Basic dynamic load rating: 2.15 kN
- Basic static load rating: 1.52 kN
FAG 3801-B-2RS-TVH
FAG 3801-B-2RS-TVH details

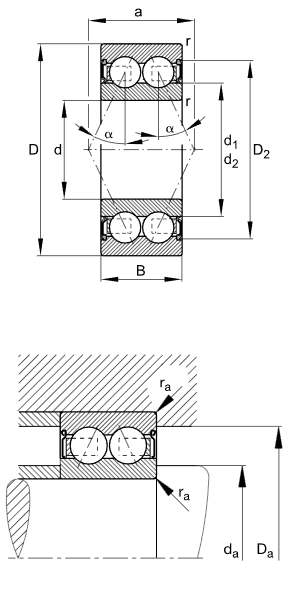

| Number | 3801-B-2RS-TVH | |
|---|---|---|
| Type | Angular contact ball bearings Double row design, lip seals on both sides, contact angle α = 25° | |
| d | 12mm | |
| D | 21mm | |
| B | 7mm | |
| a | 9,9mm | |
| D2 | 18,9mm | |
| Da max | 19mm | |
| d2 | 14,2mm | |
| da min | 14mm | |
| ra max | 0,3mm | |
| rmin | 0,3mm | |
| α | 25° | Contact angle |
| m | 0,01kg | Mass |
| Cr | 2150N | Basic dynamic load rating, radial |
| C0r | 1520N | Basic static load rating, radial |
| Cur | 77N | Fatigue limit load, radial |
| nG | 175001/min | Limiting speed |
