FAG 7004-B-XL-2RS-TVP Angular contact ball bearings
Also known as : 7004-B-XL-2RS-TVP
- Inside Diameter: 20 mm
- Outside Diameter: 42 mm
- Width: 12 mm
- Basic dynamic load rating: 14.5 kN
- Basic static load rating: 8 kN
FAG 7004-B-XL-2RS-TVP
FAG 7004-B-XL-2RS-TVP details

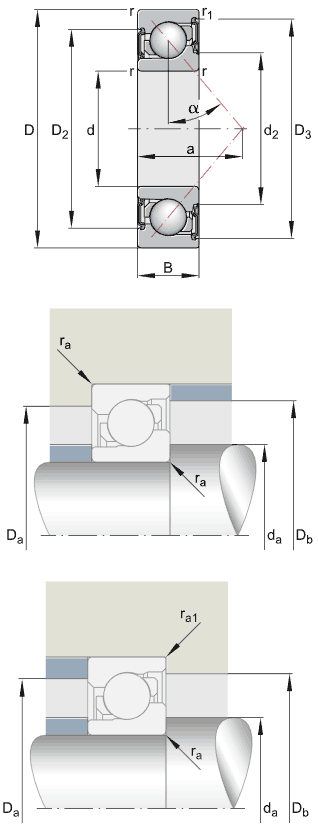

| Number | 7004-B-XL-2RS-TVP | |
|---|---|---|
| Type | Angular contact ball bearings contact angle α = 40°, lip seals on both sides | |
| d | 20mm | |
| D | 42mm | |
| B | 12mm | |
| a | 12mm | |
| D1 | 34,8mm | |
| D2 | 35,5mm | |
| D3 | 39,8mm | |
| Da max | 38,8mm | |
| Db max | 40mm | |
| d2 | 26,5mm | |
| da min | 23,2mm | |
| r1 min | 0,3mm | |
| ra max | 0,6mm | |
| ra1 max | 0,3mm | |
| rmin | 0,6mm | |
| α | 40° | Contact angle |
| m | 0,061kg | Mass |
| Cr | 14500N | Basic dynamic load rating, radial |
| C0r | 8000N | Basic static load rating, radial |
| Cur | 540N | Fatigue limit load, radial |
| nG | 98001/min | Limiting speed |
