FAG HSS7018-C-T-P4S Angular contact ball bearings
Also known as : HSS7018-C-T-P4S
- Inside Diameter: 90 mm
- Outside Diameter: 140 mm
- Width: 24 mm
- Basic dynamic load rating: 36 kN
- Basic static load rating: 26.5 kN
FAG HSS7018-C-T-P4S

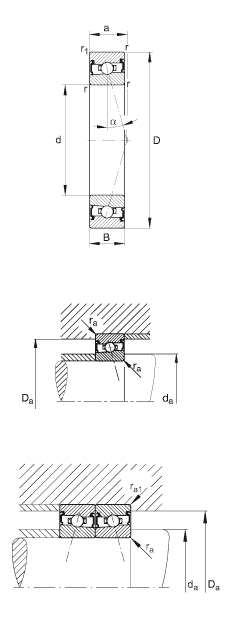

FAG HSS7018-C-T-P4S details
| Number | HSS7018-C-T-P4S | |
|---|---|---|
| Type | FAG spindle bearings adjusted, in pairs or sets, contact angle a = 15°, lip seals on both sides, non-contact, restricted tolerances | |
| d | 90 mm | |
| D | 140 mm | |
| B | 24 mm | |
| a | 27,4 mm | |
| Da | 131 mm | Tolerance: H12 |
| da | 100 mm | Tolerance: h12 |
| r1 min | 1,5 mm | |
| ra max | 1,5 mm | |
| ra1 max | 0,6 mm | |
| rmin | 1,5 mm | |
| α | 15 ° | Contact angle |
| m | 1,38 kg | ≈ Mass |
| Cr | 36000 N | Basic dynamic load rating, radial |
| C0r | 26500 N | Basic static load rating, radial |
| Cur | 2550 N | Fatigue limit load, radial |
| nG Fett | 14000 1/min | Limiting speed for grease lubrication The limiting speeds are based on elastically preloaded single bearings. |
| FV L | 126 N | Preload force |
| FV M | 377 N | Preload force |
| FV H | 754 N | Preload force |
| KaE L | 375 N | Lift-off force |
| KaE M | 1178 N | Lift-off force |
| KaE H | 2451 N | Lift-off force |
| ca L | 65,4 N/µm | Axial rigidity |
| ca M | 102 N/µm | Axial rigidity |
| ca H | 140 N/µm | Axial rigidity |
