FAG HS7005-C-T-P4S Angular contact ball bearings
Also known as : HS7005-C-T-P4S
- Inside Diameter: 25 mm
- Outside Diameter: 47 mm
- Width: 12 mm
- Basic dynamic load rating: 5.8 kN
- Basic static load rating: 2.95 kN
FAG HS7005-C-T-P4S

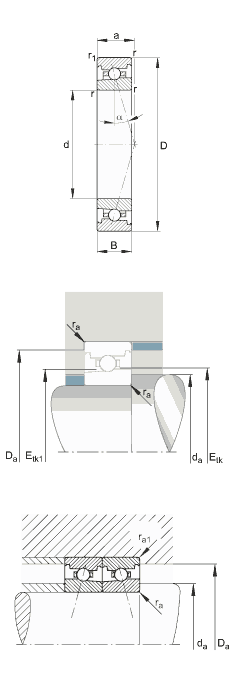

FAG HS7005-C-T-P4S details
| Number | HS7005-C-T-P4S | |
|---|---|---|
| Type | FAG spindle bearings adjusted, in pairs or sets, contact angle a = 15°, restricted tolerances | |
| d | 25 mm | |
| D | 47 mm | |
| B | 12 mm | |
| a | 10,8 mm | |
| Da | 42 mm | Tolerance: H12 |
| da | 30 mm | Tolerance: h12 |
| Etk max | 34,5 mm | |
| Etk min | 33,6 mm | |
| Etk1 max | 34,5 mm | |
| Etk1 min | 32,2 mm | |
| r1 min | 0,6 mm | |
| ra max | 0,6 mm | |
| ra1 max | 0,3 mm | |
| rmin | 0,6 mm | |
| α | 15 ° | Contact angle |
| m | 0,087 kg | ≈ Mass |
| Cr | 5800 N | Basic dynamic load rating, radial |
| C0r | 2950 N | Basic static load rating, radial |
| Cur | 305 N | Fatigue limit load, radial |
| nG Fett | 45000 1/min | Limiting speed for grease lubrication The limiting speeds are based on elastically preloaded single bearings. |
| nG Öl | 70000 1/min | Limiting speed for minimal quantity oil lubrication The limiting speeds are based on elastically preloaded single bearings. |
| FV L | 21 N | Preload force |
| FV M | 63 N | Preload force |
| FV H | 127 N | Preload force |
| KaE L | 64 N | Lift-off force |
| KaE M | 201 N | Lift-off force |
| KaE H | 419 N | Lift-off force |
| ca L | 20,6 N/µm | Axial rigidity |
| ca M | 32,7 N/µm | Axial rigidity |
| ca H | 45 N/µm | Axial rigidity |
