NSK 7016CDF Angular contact ball bearings
Also known as : 7016CDF
- Inside Diameter: 80 mm
- Outside Diameter: 125 mm
- Width: 22 mm
- Basic dynamic load rating: 95.5 kN
- Basic static load rating: 111 kN
NSK 7016CDF

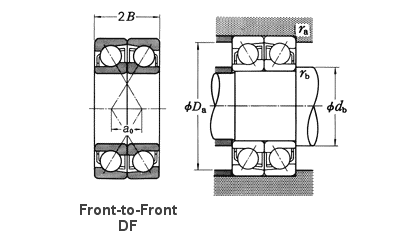

NSK 7016CDF details
| model | 7016CDF |
|---|---|
| d | 80 mm |
| D | 125 mm |
| B | 22 mm |
| 2B | 44 mm |
| a | 5.4 mm |
| rmin. | 1.1 mm |
| r1 min. | 0.60 mm |
| Cr |
95500 N 9700 kgf |
| C0r |
111000 N 11300 kgf |
| Limiting speeds | 6300 min-1 (Grease) |
| Limiting speeds | 9000 min-1 (Oil) |
| da | 87.0 mm |
| Da | 118.0 mm |
| ra | 1.0 mm |
| Mass | 0.966 kg (approx.) |
