SKF 3205 A-2Z/C3 Angular contact ball bearings
Also known as : 3205 A-2Z/C3, 5205A-2Z/C3
- Inside Diameter: 25 mm
- Outside Diameter: 52 mm
- Width: 20.6 mm
- Basic dynamic load rating: 21.6 kN
- Basic static load rating: 14.3 kN
SKF 3205 A-2Z/C3

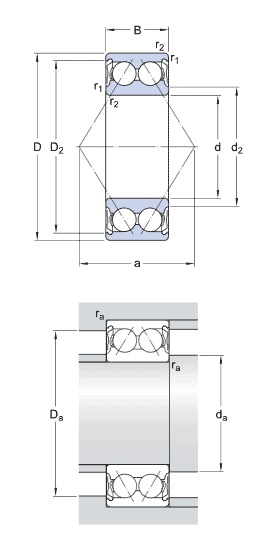

SKF 3205 A-2Z/C3 details
| model | 3205 A-2Z/C3 |
|---|---|
| d | 25 mm |
| D | 52 mm |
| B | 20.6 mm |
| d2 | 32.7 mm |
| D2 | 45.9 mm |
| a | 30 mm |
| r1,2 min. | 1 mm |
| da min | 30.6 mm |
| Da max | 32.5 mm |
| ra max | 1 mm |
| C | 21.6 kN, Basic dynamic load rating |
| C0 | 14.3 kN, Basic static load rating |
| Pu | 0.6 kN, Fatigue load limit |
| Reference speed | 12000 r/min |
| Limiting speed | 12000 r/min |
| kr | 0.06, Calculation factor |
| e | 0.8, Calculation factor |
| X | 0.63, Calculation factor |
| Y0 | 0.66, Calculation factor |
| Y1 | 0.78, Calculation factor |
| Y2 | 1.24, Calculation factor |
| Mass | 0.18 kg |
