SKF QJ315N2MA Angular contact ball bearings
Also known as : QJ315N2MA, QJ315
- Inside Diameter: 75 mm
- Outside Diameter: 160 mm
- Width: 37 mm
- Basic dynamic load rating: 216 kN
- Basic static load rating: 200 kN
SKF QJ315N2MA

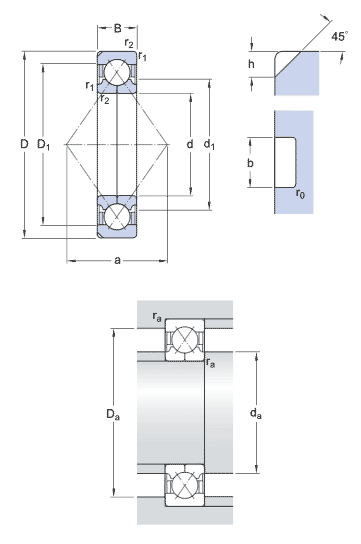

SKF QJ315N2MA details
| model | QJ315N2MA |
|---|---|
| d | 75 mm |
| D | 160 mm |
| B | 37 mm |
| d1 | 104 mm |
| D1 | 131 mm |
| a | 82 mm |
| h | 10.1 mm |
| b | 8.5 mm |
| r0 | 2 mm |
| r1,2 min. | 2.1 mm |
| da min | 87 mm |
| Da max | 148 mm |
| ra max | 2 mm |
| C | 216 kN, Basic dynamic load rating |
| C0 | 200 kN, Basic static load rating |
| Pu | 7.8 kN, Fatigue load limit |
| Limiting speed | 7500 r/min |
| A | 122.38, Calculation factor |
| e | 0.95, Calculation factor |
| X | 0.6, Calculation factor |
| Y0 | 0.58, Calculation factor |
| Y1 | 0.66, Calculation factor |
| Y2 | 1.07, Calculation factor |
| Mass | 3.9 kg |
