SKF QJ322N2MA Angular contact ball bearings
Also known as : QJ322N2MA, QJ322-NA-MPA
- Inside Diameter: 110 mm
- Outside Diameter: 240 mm
- Width: 50 mm
- Basic dynamic load rating: 390 kN
- Basic static load rating: 480 kN
SKF QJ322N2MA

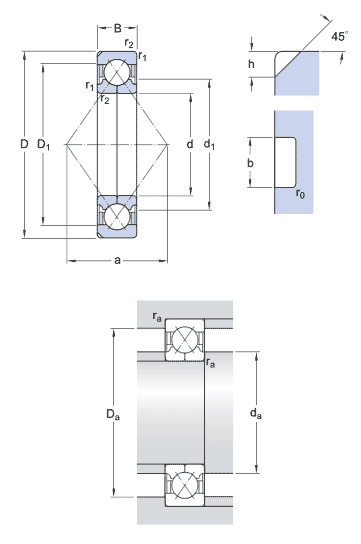

SKF QJ322N2MA details
| model | QJ322N2MA |
|---|---|
| d | 110 mm |
| D | 240 mm |
| B | 50 mm |
| d1 | 154 mm |
| D1 | 196 mm |
| a | 123 mm |
| h | 11.7 mm |
| b | 10.5 mm |
| r0 | 2 mm |
| r1,2 min. | 3 mm |
| da min | 124 mm |
| Da max | 226 mm |
| ra max | 2.5 mm |
| C | 390 kN, Basic dynamic load rating |
| C0 | 480 kN, Basic static load rating |
| Pu | 15.3 kN, Fatigue load limit |
| Limiting speed | 4800 r/min |
| A | 634.81, Calculation factor |
| e | 0.95, Calculation factor |
| X | 0.6, Calculation factor |
| Y0 | 0.58, Calculation factor |
| Y1 | 0.66, Calculation factor |
| Y2 | 1.07, Calculation factor |
| Mass | 12.5 kg |
