SKF QJ311MA Angular contact ball bearings
Also known as : QJ311MA, QJ311-MPA
- Inside Diameter: 55 mm
- Outside Diameter: 120 mm
- Width: 29 mm
- Basic dynamic load rating: 137 kN
- Basic static load rating: 118 kN
SKF QJ311MA

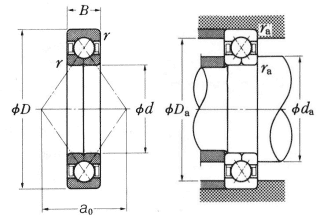

SKF QJ311MA details
| model | QJ311MA |
|---|---|
| d | 55 mm |
| D | 120 mm |
| B | 29 mm |
| d1 | 70.5 mm |
| D1 | 97.8 mm |
| a | 61 mm |
| r1,2 min. | 2 mm |
| da min | 66 mm |
| Da max | 109 mm |
| ra max | 2 mm |
| C | 137 kN, Basic dynamic load rating |
| C0 | 118 kN, Basic static load rating |
| Pu | 5 kN, Fatigue load limit |
| Limiting speed | 10000 r/min |
| A | 40.42, Calculation factor |
| e | 0.95, Calculation factor |
| X | 0.6, Calculation factor |
| Y0 | 0.58, Calculation factor |
| Y1 | 0.66, Calculation factor |
| Y2 | 1.07, Calculation factor |
| Mass | 1.75 kg |
