NSK 5210 Angular contact ball bearings
Also known as : 52103210
- Inside Diameter: 50 mm
- Outside Diameter: 90 mm
- Width: 30.2 mm
- Basic dynamic load rating: 53 kN
- Basic static load rating: 43.5 kN
NSK 5210
NSK 5210 details

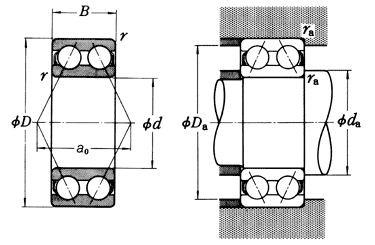

| model | 5210 |
|---|---|
| d | 50 mm |
| D | 90 mm |
| B | 30.2 mm |
| rmin. | 1.1 mm |
| Cr |
53000 N 5400 kgf |
| C0r |
43500 N 4400 kgf |
| Limiting speeds | 4800 min-1 (Grease) |
| Limiting speeds | 6000 min-1 (Oil) |
| da | 57 mm |
| Da | 83 mm |
| ra | 1.0 mm |
| Mass | 0.67 kg (approx.) |
NSK 5210 bearing cross reference
30/5-B-2Z-TVH
50 mmx 90 mmx 30.2 mm
3806-B-2RS-TVH
50 mmx 90 mmx 30.2 mm
3801-B-2RS-TVH
50 mmx 90 mmx 30.2 mm
3217-B-2RS-TVH
50 mmx 90 mmx 30.2 mm
3313-BD-XL
50 mmx 90 mmx 30.2 mm
3311-BD-XL
50 mmx 90 mmx 30.2 mm
3310-BD-XL-TVH
50 mmx 90 mmx 30.2 mm
3310-BD-XL
50 mmx 90 mmx 30.2 mm
3309-BD-XL
50 mmx 90 mmx 30.2 mm
3307-BD-XL
50 mmx 90 mmx 30.2 mm
3306-BD-XL
50 mmx 90 mmx 30.2 mm
