SKF QJ210MA Angular contact ball bearings
Also known as : QJ210MA, QJ210-XL-MPA
- Inside Diameter: 50 mm
- Outside Diameter: 90 mm
- Width: 20 mm
- Basic dynamic load rating: 65.5 kN
- Basic static load rating: 61 kN
SKF QJ210MA

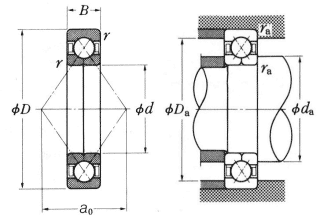

SKF QJ210MA details
| model | QJ210MA |
|---|---|
| d | 50 mm |
| D | 90 mm |
| B | 20 mm |
| d1 | 59.5 mm |
| D1 | 76.5 mm |
| a | 49 mm |
| r1,2 min. | 1.1 mm |
| da min | 57 mm |
| Da max | 83 mm |
| ra max | 1 mm |
| C | 65.5 kN, Basic dynamic load rating |
| C0 | 61 kN, Basic static load rating |
| Pu | 2.6 kN, Fatigue load limit |
| Limiting speed | 13000 r/min |
| A | 10.281, Calculation factor |
| e | 0.95, Calculation factor |
| X | 0.6, Calculation factor |
| Y0 | 0.58, Calculation factor |
| Y1 | 0.66, Calculation factor |
| Y2 | 1.07, Calculation factor |
| Mass | 0.59 kg |
SKF QJ210MA bearing cross reference
30/5-B-2Z-TVH
50 mmx 90 mmx 20 mm
3806-B-2RS-TVH
50 mmx 90 mmx 20 mm
3801-B-2RS-TVH
50 mmx 90 mmx 20 mm
3217-B-2RS-TVH
50 mmx 90 mmx 20 mm
3313-BD-XL
50 mmx 90 mmx 20 mm
3311-BD-XL
50 mmx 90 mmx 20 mm
3310-BD-XL-TVH
50 mmx 90 mmx 20 mm
3310-BD-XL
50 mmx 90 mmx 20 mm
3309-BD-XL
50 mmx 90 mmx 20 mm
3307-BD-XL
50 mmx 90 mmx 20 mm
3306-BD-XL
50 mmx 90 mmx 20 mm
