NSK 5201 Angular contact ball bearings
Also known as : 5201, 3201
- Inside Diameter: 12 mm
- Outside Diameter: 32 mm
- Width: 15.9 mm
- Basic dynamic load rating: 10.5 kN
- Basic static load rating: 5.8 kN
NSK 5201

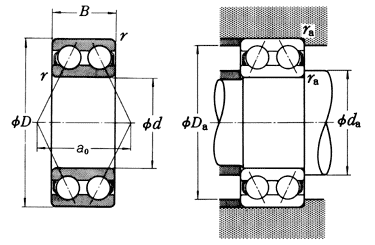

NSK 5201 details
| model | 5201 |
|---|---|
| d | 12 mm |
| D | 32 mm |
| B | 15.9 mm |
| rmin. | 0.6 mm |
| Cr |
10500 N 1070 kgf |
| C0r |
5800 N 590 kgf |
| Limiting speeds | 15000 min-1 (Grease) |
| Limiting speeds | 20000 min-1 (Oil) |
| da | 17 mm |
| Da | 27 mm |
| ra | 0.6 mm |
| Mass | 0.06 kg (approx.) |
