INA 3001-2RS

INA 3001-2RS Angular contact ball bearings

Also known as : 3001-2RS

Inside Diameter: 12 mm
Outside Diameter: 28 mm
Width: 12 mm
Basic dynamic load rating: 6.1 kN
Basic static load rating: 3.7 kN

INA 3001-2RS

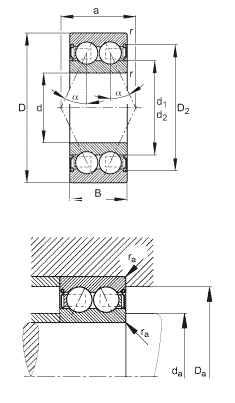

INA 3001-2RS details

d	12 mm
D	28 mm
B	12 mm
a	13,5 mm
D₂	23,2 mm
D_{a max}	26 mm
d₂	16,4 mm
d_{a min}	14 mm
r_{a max}	0,3 mm
r_min	0,3 mm
α	25 °	Contact angle
m	0,032 kg	Mass
C_r	6100 N	Basic dynamic load rating, radial
C_0r	3700 N	Basic static load rating, radial
n_G	15800 1/min	Limiting speed
C_ur	188 N	Fatigue limit load, radial
