INA 3005-2RS Angular contact ball bearings
Also known as : 3005-2RS
- Inside Diameter: 25 mm
- Outside Diameter: 47 mm
- Width: 16 mm
- Basic dynamic load rating: 15.2 kN
- Basic static load rating: 10.9 kN
INA 3005-2RS

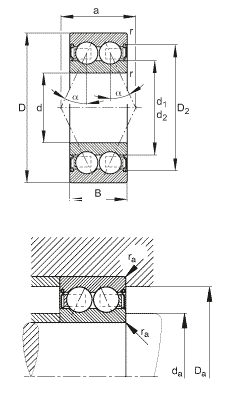

INA 3005-2RS details
| d | 25 mm | |
|---|---|---|
| D | 47 mm | |
| B | 16 mm | |
| a | 23,4 mm | |
| D2 | 41,8 mm | |
| Da max | 43,8 mm | |
| d2 | 30,3 mm | |
| da min | 28,2 mm | |
| ra max | 0,6 mm | |
| rmin | 0,6 mm | |
| α | 25 ° | Contact angle |
| m | 0,1 kg | Mass |
| Cr | 15200 N | Basic dynamic load rating, radial |
| C0r | 10900 N | Basic static load rating, radial |
| nG | 8800 1/min | Limiting speed |
| Cur | 550 N | Fatigue limit load, radial |
