INA 3202-2RS Angular contact ball bearings
Also known as : 3202-2RS
- Inside Diameter: 15 mm
- Outside Diameter: 35 mm
- Width: 15.9 mm
- Basic dynamic load rating: 12.6 kN
- Basic static load rating: 7.4 kN
INA 3202-2RS

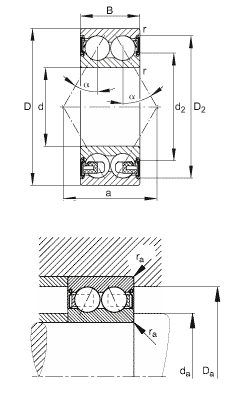

INA 3202-2RS details
| d | 15 mm | |
|---|---|---|
| D | 35 mm | |
| B | 15,9 mm | |
| a | 20,7 mm | |
| D2 | 31,1 mm | |
| Da max | 30,8 mm | |
| d2 | 21 mm | |
| da min | 19,2 mm | |
| ra max | 0,6 mm | |
| rmin | 0,6 mm | |
| α | 30 ° | Contact angle |
| m | 0,065 kg | Mass |
| Cr | 12600 N | Basic dynamic load rating, radial |
| C0r | 7400 N | Basic static load rating, radial |
| Cur | 500 N | Fatigue limit load, radial |
| nG | 16700 1/min | Limiting speed |
