INA 3206-2Z-C3 Angular contact ball bearings
Also known as : 3206-2Z-C3
- Inside Diameter: 30 mm
- Outside Diameter: 62 mm
- Width: 23.8 mm
- Basic dynamic load rating: 31 kN
- Basic static load rating: 22.2 kN
INA 3206-2Z-C3

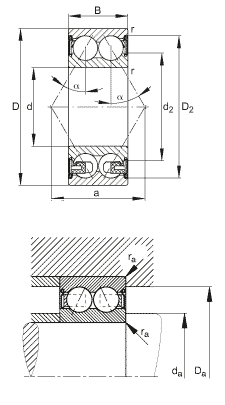

INA 3206-2Z-C3 details
| d | 30 mm | |
|---|---|---|
| D | 62 mm | |
| B | 23,8 mm | |
| a | 36,4 mm | |
| D2 | 55,8 mm | |
| Da max | 56,4 mm | |
| d2 | 40,3 mm | |
| da min | 35,6 mm | |
| ra max | 1 mm | |
| rmin | 1 mm | |
| α | 30 ° | Contact angle |
| m | 0,283 kg | Mass |
| Cr | 31000 N | Basic dynamic load rating, radial |
| C0r | 22200 N | Basic static load rating, radial |
| Cur | 1490 N | Fatigue limit load, radial |
| nG | 9000 1/min | Limiting speed |
| nB | 11100 1/min | Reference speed |
