FAG QJ336-N2-MPA-C3 Angular contact ball bearings
Also known as : QJ336-N2-MPA-C3
- Inside Diameter: 180 mm
- Outside Diameter: 380 mm
- Width: 75 mm
- Basic dynamic load rating: 690 kN
- Basic static load rating: 1130 kN
FAG QJ336-N2-MPA-C3

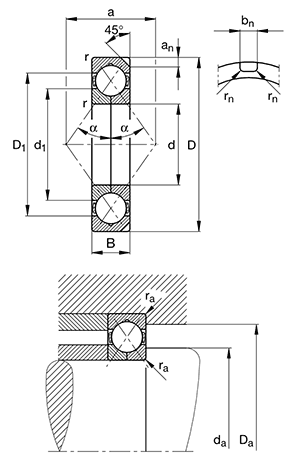

FAG QJ336-N2-MPA-C3 details
| Number | QJ336-N2-MPA-C3 | |
|---|---|---|
| Type |
Four point contact bearings main dimensions to DIN 628-4, can be dismantled, with split inner ring, with two retaining slots |
|
| d | 180mm | |
| D | 380mm | |
| B | 75mm | |
| 45° | Groove angle | |
| a | 196mm | |
| an | 12,7mm | |
| bn | 10,5mm | |
| D1 | 311mm | |
| Da max | 363mm | |
| d1 | 249,1mm | |
| da min | 197mm | |
| ra max | 3mm | |
| rmin | 4mm | |
| rn | 2mm | |
| α | 35° | Contact angle |
| m | 44,9kg | Mass |
| Cr | 690000N | Basic dynamic load rating, radial |
| C0r | 1130000N | Basic static load rating, radial |
| Cur | 38500N | Fatigue limit load, radial |
| nG | 30001/min | Limiting speed |
| nϑr | 14201/min | Reference speed |
