FAG QJ211-XL-MPA-C3 Angular contact ball bearings
Also known as : QJ211-XL-MPA-C3
- Inside Diameter: 55 mm
- Outside Diameter: 100 mm
- Width: 21 mm
- Basic dynamic load rating: 77 kN
- Basic static load rating: 71 kN
FAG QJ211-XL-MPA-C3

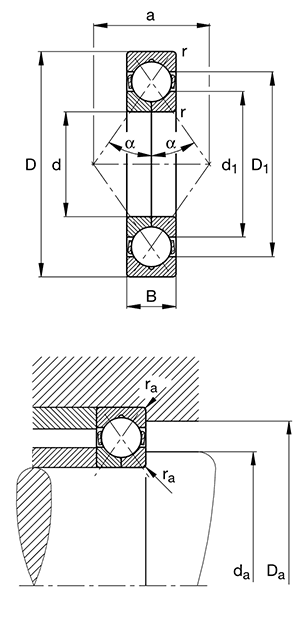

FAG QJ211-XL-MPA-C3 details
| Number | QJ211-XL-MPA-C3 | |
|---|---|---|
| Type |
Four point contact bearings main dimensions to DIN 628-4, separable, with split inner ring |
|
| d | 55mm | |
| D | 100mm | |
| B | 21mm | |
| a | 54mm | |
| D1 | 84,7mm | |
| Da max | 91mm | |
| d1 | 70,4mm | |
| da min | 64mm | |
| ra max | 1,5mm | |
| rmin | 1,5mm | |
| α | 35° | Contact angle |
| m | 0,75kg | Mass |
| Cr | 77000N | Basic dynamic load rating, radial |
| C0r | 71000N | Basic static load rating, radial |
| Cur | 5000N | Fatigue limit load, radial |
| nG | 124001/min | Limiting speed |
| nϑr | 59001/min | Reference speed |
