SKF FYC50TF pillow block bearings
Also known as : FYC50TF
- Shaft Size: 39.5 mm
- Total Width: 165 mm
- Total Height:
- Total Length: 50 mm
SKF FYC50TF

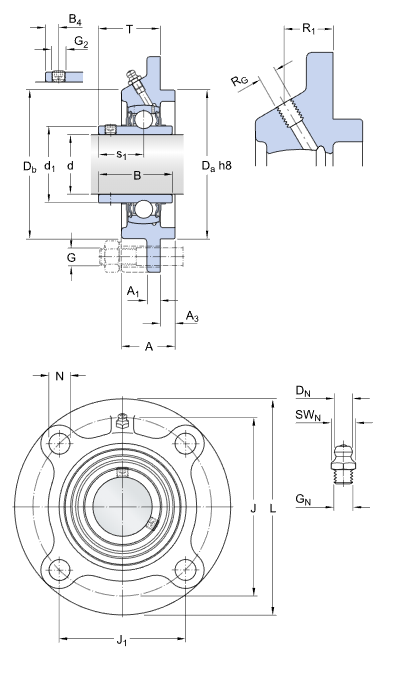

SKF FYC50TF details
| SKF part number | FYC 50 TF | |
| Housing | FYC 510 | |
| Bearing | YAR 210-2F | |
| d | 50 | mm |
| d1 | 62.51 | mm |
| A | 39.5 | mm |
| A1 | 14 | mm |
| A3 | 12 | mm |
| B | 51.6 | mm |
| B1 | 51.6 | mm |
| B4 | 9 | mm |
| Da | 110 | mm |
| Db | 113.1 | mm |
| J | 138 | mm |
| J1 | 97.6 | mm |
| L | 165 | mm |
| N | 16 | mm |
| s1 | 32.6 | mm |
| T | 42.6 | mm |
| Threaded hole | ||
| RG | 1/4-28 UNF | |
| R1 | 22 | mm |
| Grease fitting | ||
| DN | 6.5 | mm |
| SWN | 7 | mm |
| GN | 1/4-28 SAE-LT | |
| Basic dynamic load rating, C | 35.1 | kN |
| Basic static load rating, C0 | 23.2 | kN |
| Fatigue load limit, Pu | 0.98 | kN |
| Limiting speed | 4000 | r/min |
| with shaft tolerance h6 | ||
| Mass unit | 2.85 | kg |
| Thread grub screw, G2 | M10x1 | |
| Hexagonal key size for grub screw, N | 5 | mm |
| Recommended tightening torque for grub screw | 16.5 | N·m |
| Recommended diameter for attachment bolts, mm, G | 14 | mm |
| Recommended diameter for attachment bolts, inch, G | 0.5625 | in |
