SKF 628/8-2RS1 Deep groove ball bearings
Also known as : 628/8-2RS1, 628/8DDU
- Inside Diameter: 8 mm
- Outside Diameter: 16 mm
- Width: 5 mm
- Basic dynamic load rating: 1.3 kN
- Basic static load rating: 0.57 kN
SKF 628/8-2RS1

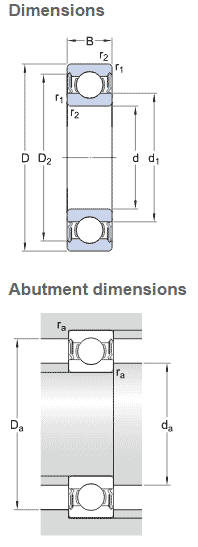

SKF 628/8-2RS1 details
| model | 628/8-2RS1 |
|---|---|
| d | 8 mm |
| D | 16 mm |
| B | 5 mm |
| d1 | 10.1 mm |
| D2 | 14.2 mm |
| r1,2 min. | 0.2 mm |
| da min | 9.4 mm |
| da max | 9.4 mm |
| Da max | 14.6 mm |
| ra max | 0.2 mm |
| C | 1.3 kN, Basic dynamic load rating |
| C0 | 0.57 kN, Basic static load rating |
| Pu | 0.024 kN, Fatigue load limit |
| Limiting speed | 26000 r/min |
| kr | 0.015, Calculation factor |
| f0 | 11, Calculation factor |
| Mass | 0.0036 kg |
SKF 628/8-2RS1 bearing cross reference
302K
8 mmx 16 mmx 5 mm
301K
8 mmx 16 mmx 5 mm
62207-2RS-C3
8 mmx 16 mmx 5 mm
62306-2RS-C3
8 mmx 16 mmx 5 mm
63005-2RS-C3
8 mmx 16 mmx 5 mm
62205-2RS-C3
8 mmx 16 mmx 5 mm
62304-2RS-C3
8 mmx 16 mmx 5 mm
62204-2RS-C3
8 mmx 16 mmx 5 mm
63003-2RS-C3
8 mmx 16 mmx 5 mm
62303-2RS-C3
8 mmx 16 mmx 5 mm
63002-2RS-C3
8 mmx 16 mmx 5 mm
