TIMKEN 62205-2RS-C3 Deep groove ball bearings
Also known as : 62205-2RS-C3
- Inside Diameter: 25 mm
- Outside Diameter: 52 mm
- Width: 18 mm
- Basic dynamic load rating: 14 kN
- Basic static load rating: 7.8 kN
TIMKEN 62205-2RS-C3
TIMKEN 62205-2RS-C3 details
| Bearing Number | 62205-2RS-C3 |
|---|---|
| Brand | TIMKEN |
| Type | Deep groove ball bearings |
| Clearance | C3 |

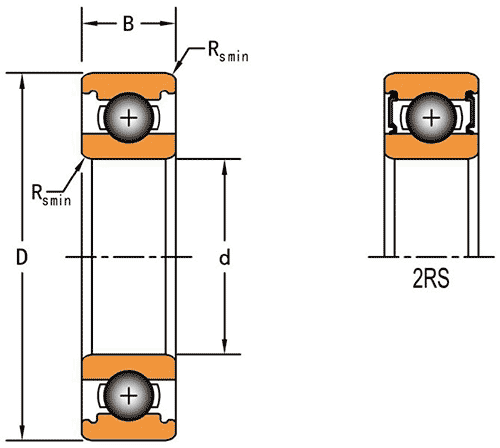

| Bore Size d | 25.000 mm |
| Features | Contact Seals |
| Weight | 0.150 Kg |
| Grease Reference Speed | 15000 rpm |
| Outside Diameter D | 52.000 mm |
| Outside Ring Width B | 18.000 mm |
| Radius Rs min | 1.000 mm |
| Cr - Dynamic Load Rating | 14 kN |
| C0r - Static Load Rating | 7.8 kN |
| Grease Limiting Speed | 15000 rpm |
TIMKEN 62205-2RS-C3 bearing cross reference
302K
25 mmx 52 mmx 18 mm
301K
25 mmx 52 mmx 18 mm
62207-2RS-C3
25 mmx 52 mmx 18 mm
62306-2RS-C3
25 mmx 52 mmx 18 mm
63005-2RS-C3
25 mmx 52 mmx 18 mm
62205-2RS-C3
25 mmx 52 mmx 18 mm
62304-2RS-C3
25 mmx 52 mmx 18 mm
62204-2RS-C3
25 mmx 52 mmx 18 mm
63003-2RS-C3
25 mmx 52 mmx 18 mm
62303-2RS-C3
25 mmx 52 mmx 18 mm
63002-2RS-C3
25 mmx 52 mmx 18 mm
