SKF 634-2Z Deep groove ball bearings
Also known as : 634-2Z, 634ZZ
- Inside Diameter: 4 mm
- Outside Diameter: 16 mm
- Width: 5 mm
- Basic dynamic load rating: 1.1 kN
- Basic static load rating: 0.38 kN
SKF 634-2Z

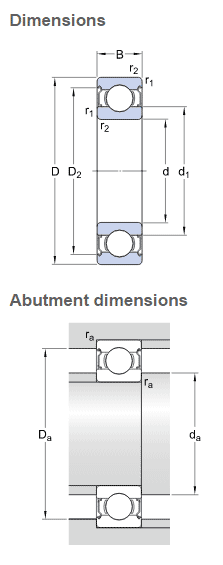

SKF 634-2Z details
| model | 634-2Z |
|---|---|
| d | 4 mm |
| D | 16 mm |
| B | 5 mm |
| d1 | 8.4 mm |
| D2 | 13.3 mm |
| r1,2 min. | 0.3 mm |
| da min | 6.4 mm |
| da max | 8.3 mm |
| Da max | 13.6 mm |
| ra max | 0.3 mm |
| C | 1.1 kN, Basic dynamic load rating |
| C0 | 0.38 kN, Basic static load rating |
| Pu | 0.01 kN, Fatigue load limit |
| Reference speed | 95000 r/min |
| Limiting speed | 48000 r/min |
| kr | 0.03, Calculation factor |
| f0 | 8.4, Calculation factor |
| Mass | 0.0054 kg |
SKF 634-2Z bearing cross reference
302K
4 mmx 16 mmx 5 mm
301K
4 mmx 16 mmx 5 mm
62207-2RS-C3
4 mmx 16 mmx 5 mm
62306-2RS-C3
4 mmx 16 mmx 5 mm
63005-2RS-C3
4 mmx 16 mmx 5 mm
62205-2RS-C3
4 mmx 16 mmx 5 mm
62304-2RS-C3
4 mmx 16 mmx 5 mm
62204-2RS-C3
4 mmx 16 mmx 5 mm
63003-2RS-C3
4 mmx 16 mmx 5 mm
62303-2RS-C3
4 mmx 16 mmx 5 mm
63002-2RS-C3
4 mmx 16 mmx 5 mm
