NSK 6204ZZ Deep groove ball bearings
Also known as : 6204ZZ, 6204-2Z
- Inside Diameter: 20 mm
- Outside Diameter: 47 mm
- Width: 14 mm
- Basic dynamic load rating: 12.8 kN
- Basic static load rating: 6.6 kN
NSK 6204ZZ

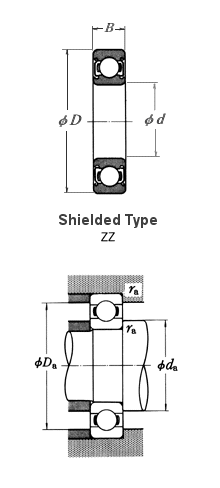

NSK 6204ZZ details
| model | 6204ZZ |
|---|---|
| d | 20 mm |
| D | 47 mm |
| B | 14 mm |
| rmin. | 1.0 mm |
| Cr |
12800 N 1300 kgf |
| C0r |
6600 N 670 kgf |
| Limiting speeds | 15000 min-1 (Grease) |
| f0 | 13.1 (Factor) |
| da min | 25 mm |
| da max | 26.5 mm |
| Da | 42 mm |
| ra | 1 mm |
| Mass | 0.107 kg (approx.) |
NSK 6204ZZ bearing cross reference
302K
20 mmx 47 mmx 14 mm
301K
20 mmx 47 mmx 14 mm
62207-2RS-C3
20 mmx 47 mmx 14 mm
62306-2RS-C3
20 mmx 47 mmx 14 mm
63005-2RS-C3
20 mmx 47 mmx 14 mm
62205-2RS-C3
20 mmx 47 mmx 14 mm
62304-2RS-C3
20 mmx 47 mmx 14 mm
62204-2RS-C3
20 mmx 47 mmx 14 mm
63003-2RS-C3
20 mmx 47 mmx 14 mm
62303-2RS-C3
20 mmx 47 mmx 14 mm
63002-2RS-C3
20 mmx 47 mmx 14 mm
