FAG 6009-2Z Deep groove ball bearings
Also known as : 6009ZZ
- Inside Diameter: 45 mm
- Outside Diameter: 75 mm
- Width: 16 mm
- Basic dynamic load rating: 21200 kN
- Basic static load rating: 14400 kN
FAG 6009-2Z
FAG 6009-2Z details
| Part Number | 6009-2Z |
|---|---|
| Brand | FAG |
| Catagory | Deep groove ball bearing 60..-2Z, single row, shields, steel sheet metal cage |
| d | 45 mm, Bore diameter |
| D | 75 mm, Outside diameter |
| B | 16 mm, Width |
| Cr | 21200 N, Basic dynamic load rating, radial |
| C0r | 14400 N, Basic static load rating, radial |
| Cur | 750 N, Fatigue load limit, radial |
| Limiting speed | 11200 1/min |
| Reference speed | 9700 1/min |
| Weight | 0.241 kg |

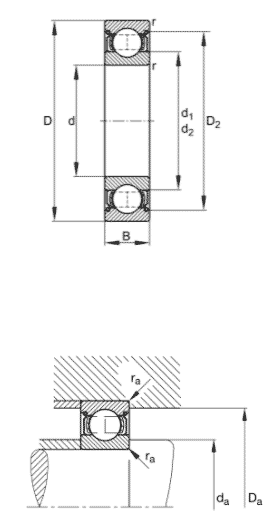

| Other Dimensions | |
| rmin | 1 mm, Minimum chamfer dimension |
| D2 | 68 mm, Caliber diameter outer ring |
| Mounting dimensions | |
| da min | 49.6 mm, Minimum diameter shaft shoulder |
| Da max | 70.4 mm, Maximum diameter of housing shoulder |
| ra max | 1 mm, Maximum diameter of housing shoulder |
| Calculation factors | |
| f0 | 15.3, Calculation factor |
