NSK 6309ZZ Deep groove ball bearings
Also known as : 6309ZZ, 6309-2Z
- Inside Diameter: 45 mm
- Outside Diameter: 100 mm
- Width: 25 mm
- Basic dynamic load rating: 53 kN
- Basic static load rating: 32 kN
NSK 6309ZZ

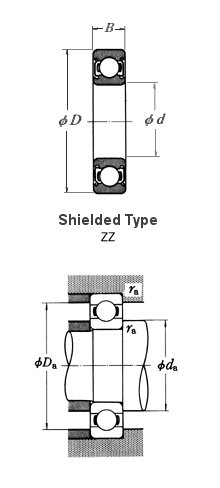

NSK 6309ZZ details
| model | 6309ZZ |
|---|---|
| d | 45 mm |
| D | 100 mm |
| B | 25 mm |
| rmin. | 1.5 mm |
| Cr |
53000 N 5400 kgf |
| C0r |
32000 N 3250 kgf |
| Limiting speeds | 6700 min-1 (Grease) |
| f0 | 13.1 (Factor) |
| da min | 53 mm |
| da max | 61.5 mm |
| Da | 92 mm |
| ra | 1.5 mm |
| Mass | 0.829 kg (approx.) |
