NSK 6856M Deep groove ball bearings
Also known as : 6856M, 61856-M
- Inside Diameter: 280 mm
- Outside Diameter: 350 mm
- Width: 33 mm
- Basic dynamic load rating: 133 kN
- Basic static load rating: 191 kN
NSK 6856M

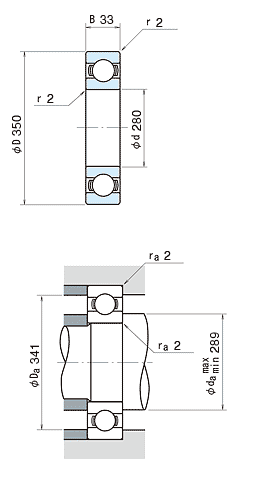

NSK 6856M details
| model | 6856M |
|---|---|
| d | 280 mm |
| D | 350 mm |
| B | 33 mm |
| rmin. | 2.0 mm |
| Cr |
133000 N 13600 kgf |
| C0r |
191000 N 19500 kgf |
| Limiting speeds | 1500 min-1 (Grease) |
| Limiting speeds | 1700 min-1 (Oil) |
| f0 | 17.3 (Factor) |
| da min | 289.0 mm |
| da max | 0.0 mm |
| Da | 341.0 mm |
| ra | 2.0 mm |
| Mass | 7.200 kg (approx.) |
NSK 6856M bearing cross reference
302K
280 mmx 350 mmx 33 mm
301K
280 mmx 350 mmx 33 mm
62207-2RS-C3
280 mmx 350 mmx 33 mm
62306-2RS-C3
280 mmx 350 mmx 33 mm
63005-2RS-C3
280 mmx 350 mmx 33 mm
62205-2RS-C3
280 mmx 350 mmx 33 mm
62304-2RS-C3
280 mmx 350 mmx 33 mm
62204-2RS-C3
280 mmx 350 mmx 33 mm
63003-2RS-C3
280 mmx 350 mmx 33 mm
62303-2RS-C3
280 mmx 350 mmx 33 mm
63002-2RS-C3
280 mmx 350 mmx 33 mm
