NSK 6936 Deep groove ball bearings
Also known as : 6936, 61936
- Inside Diameter: 180 mm
- Outside Diameter: 250 mm
- Width: 33 mm
- Basic dynamic load rating: 119 kN
- Basic static load rating: 128 kN
NSK 6936

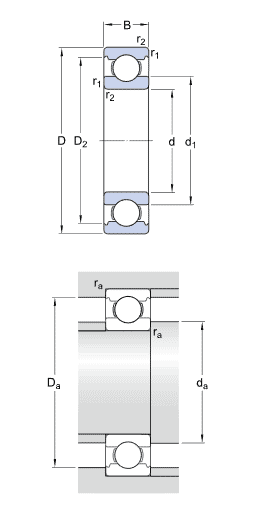

NSK 6936 details
| PN | 6936 |
|---|---|
| d | 180 mm |
| D | 250 mm |
| B | 33 mm |
| rmin. | 2.0 mm |
| Cr |
119000 N 12100 kgf |
| C0r |
128000 N 13100 kgf |
| Limiting speeds | 2200 min-1 (Grease) |
| Limiting speeds | 2600 min-1 (Oil) |
| f0 | 16.4 (Factor) |
| da min | 189.0 mm |
| da max | 198.5 mm |
| Da | 241.0 mm |
| ra | 2.0 mm |
| Mass | 4.910 kg (approx.) |
NSK 6936 bearing cross reference
302K
180 mmx 250 mmx 33 mm
301K
180 mmx 250 mmx 33 mm
62207-2RS-C3
180 mmx 250 mmx 33 mm
62306-2RS-C3
180 mmx 250 mmx 33 mm
63005-2RS-C3
180 mmx 250 mmx 33 mm
62205-2RS-C3
180 mmx 250 mmx 33 mm
62304-2RS-C3
180 mmx 250 mmx 33 mm
62204-2RS-C3
180 mmx 250 mmx 33 mm
63003-2RS-C3
180 mmx 250 mmx 33 mm
62303-2RS-C3
180 mmx 250 mmx 33 mm
63002-2RS-C3
180 mmx 250 mmx 33 mm
