SKF 6206-2Z

SKF 6206-2Z Deep groove ball bearings

Also known as : 6206-2Z, 6206ZZ

Inside Diameter: 30 mm
Outside Diameter: 62 mm
Width: 16 mm
Basic dynamic load rating: 20.3 kN
Basic static load rating: 11.2 kN

SKF 6206-2Z

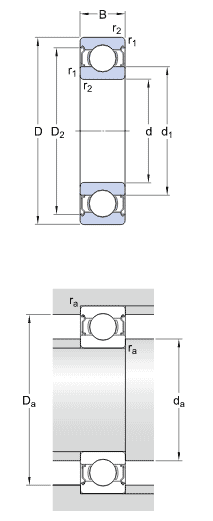

SKF 6206-2Z details

model	6206-2Z
d	30 mm
D	62 mm
B	16 mm
d₁	40.36 mm
D₂	54.06 mm
r_{1,2 min.}	1 mm
d_{a min.}	35.6 mm
d_{a max.}	40.3 mm
D_{a max.}	56.4 mm
r_{a max.}	1 mm
C_r	20.3 kN Basic dynamic load rating
C_0r	11.2 kN Basic static load rating
Reference speed	24000 r/min
Limiting speed	12000 r/min
Mass	0.207 kg

SKF 6206-2Z bearing cross reference

302K
30 mmx 62 mmx 16 mm

301K
30 mmx 62 mmx 16 mm

62207-2RS-C3
30 mmx 62 mmx 16 mm

62306-2RS-C3
30 mmx 62 mmx 16 mm

63005-2RS-C3
30 mmx 62 mmx 16 mm

62205-2RS-C3
30 mmx 62 mmx 16 mm

62304-2RS-C3
30 mmx 62 mmx 16 mm

62204-2RS-C3
30 mmx 62 mmx 16 mm

63003-2RS-C3
30 mmx 62 mmx 16 mm

62303-2RS-C3
30 mmx 62 mmx 16 mm

63002-2RS-C3
30 mmx 62 mmx 16 mm

62302-2RS-C3
30 mmx 62 mmx 16 mm
