NTN AC-6203ZZ Deep groove ball bearings
Also known as : AC-6203ZZ
- Inside Diameter: 17 mm
- Outside Diameter: 40 mm
- Width: 12 mm
- Basic dynamic load rating: 9.6 kN
- Basic static load rating: 4.6 kN
NTN AC-6203ZZ
NTN AC-6203ZZ details
| Part Number | AC-6203ZZ |
|---|---|
| Brand | NTN |
| Mass | 0.062 kg |

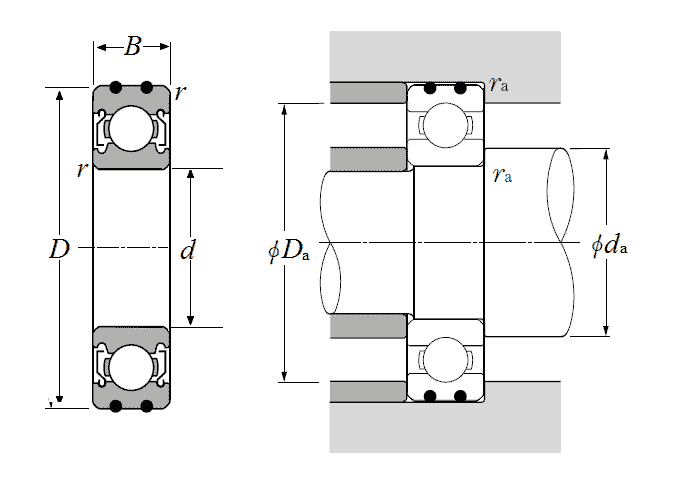

| Boundary dimensions (mm) | |
| Inner dia. (d) | 17 |
| Outer dia. (D) | 40 |
| Width (B) | 12 |
| Chamfer (rs_min) | 0.6 |
| Basic load ratings (kN) | |
| Dynamic (Cr) | 9.6 |
| Static (Cor) | 4.6 |
| Basic load ratings (kgf) | |
| Dynamic (Cr) | 980 |
| Static (Cor) | 465 |
| Limiting speed (min-1) | |
| Grease | 18000 |
| Abutment and fillet dimensions (mm) | |
| da min | 21 |
| da max | 23 |
| Da max | 36 |
| ras max | 0.6 |
XinYouYa have NTN AC-6203ZZ bearings in stock. AC bearings, have the same boundary dimensions as standard bearings with the addition of two O-rings imbedded on the outside surface of the outer ring.
NTN AC-6203ZZ bearing cross reference
302K
17 mmx 40 mmx 12 mm
301K
17 mmx 40 mmx 12 mm
62207-2RS-C3
17 mmx 40 mmx 12 mm
62306-2RS-C3
17 mmx 40 mmx 12 mm
63005-2RS-C3
17 mmx 40 mmx 12 mm
62205-2RS-C3
17 mmx 40 mmx 12 mm
62304-2RS-C3
17 mmx 40 mmx 12 mm
62204-2RS-C3
17 mmx 40 mmx 12 mm
63003-2RS-C3
17 mmx 40 mmx 12 mm
62303-2RS-C3
17 mmx 40 mmx 12 mm
63002-2RS-C3
17 mmx 40 mmx 12 mm
