NTN 6202LLU Deep groove ball bearings
Also known as : 6202DDU, 6202-2RSH, 6202-2RSR
- Inside Diameter: 15 mm
- Outside Diameter: 35 mm
- Width: 11 mm
- Basic dynamic load rating: 7.75 kN
- Basic static load rating: 3.6 kN
NTN 6202LLU
NTN 6202LLU details
| Part Number | 6202LLU |
|---|---|
| Brand | NTN |
| Mass | 0.045 kg |

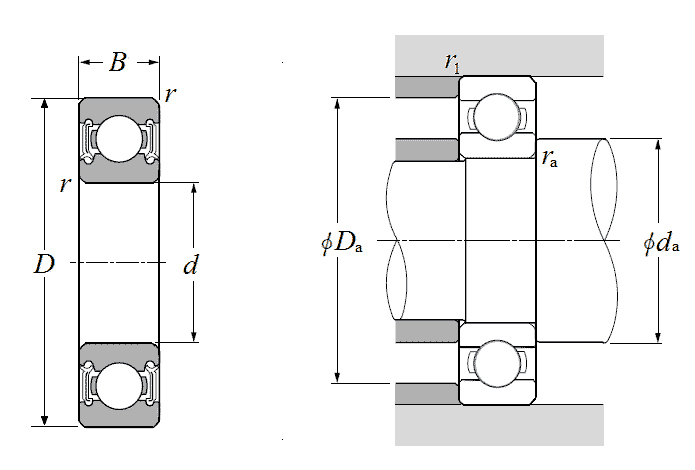

| Boundary dimensions (mm) | |
| Inner dia. (d) | 15 |
| Outer dia. (D) | 35 |
| Width (B) | 11 |
| Chamfer (rs_min) | 0.6 |
| Basic load ratings (kN) | |
| Dynamic (Cr) | 7.75 |
| Static (Cor) | 3.6 |
| Basic load ratings (kgf) | |
| Dynamic (Cr) | 790 |
| Static (Cor) | 365 |
| Limiting speed (min-1) | |
| Grease | 15000 |
| Abutment and fillet dimensions (mm) | |
| da min | 19 |
| da max | 20 |
| Da max | 31 |
| ras max | 0.6 |
XinYouYa have NTN 6202LLU bearings in stock.Deep groove ball bearings are the most widely used bearings.
NTN 6202LLU bearing cross reference
302K
15 mmx 35 mmx 11 mm
301K
15 mmx 35 mmx 11 mm
62207-2RS-C3
15 mmx 35 mmx 11 mm
62306-2RS-C3
15 mmx 35 mmx 11 mm
63005-2RS-C3
15 mmx 35 mmx 11 mm
62205-2RS-C3
15 mmx 35 mmx 11 mm
62304-2RS-C3
15 mmx 35 mmx 11 mm
62204-2RS-C3
15 mmx 35 mmx 11 mm
63003-2RS-C3
15 mmx 35 mmx 11 mm
62303-2RS-C3
15 mmx 35 mmx 11 mm
63002-2RS-C3
15 mmx 35 mmx 11 mm
