TIMKEN 16005-ZZ Deep groove ball bearings
Also known as : 16005-ZZ
- Inside Diameter: 25 mm
- Outside Diameter: 47 mm
- Width: 8 mm
- Basic dynamic load rating: 7 kN
- Basic static load rating: 4.6 kN
TIMKEN 16005-ZZ

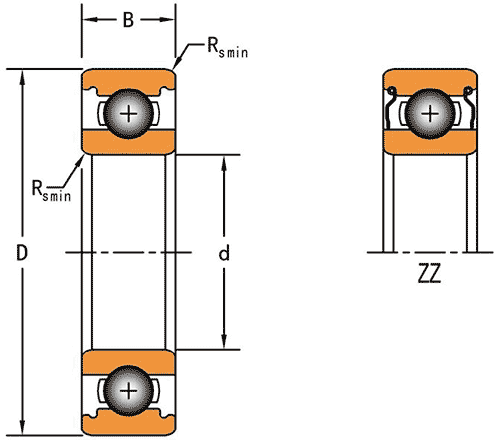

TIMKEN 16005-ZZ details
| Bearing Number | 16005-ZZ |
|---|---|
| Brand | TIMKEN |
| Type | Deep groove ball bearings |
| Clearance | C0 (Normal) |
| Bore Size d | 25.000 mm |
| Features | Shields |
| Weight | 0.060 Kg |
| Outside Diameter D | 47.000 mm |
| Outside Ring Width B | 8.000 mm |
| Radius Rs min | 0.300 mm |
| Cr - Dynamic Load Rating | 7 kN |
| C0r - Static Load Rating | 4.6 kN |
| Grease Limiting Speed | 11000 rpm |
| Oil Limiting Speed | 16000 rpm |
TIMKEN 16005-ZZ bearing cross reference
302K
25 mmx 47 mmx 8 mm
301K
25 mmx 47 mmx 8 mm
62207-2RS-C3
25 mmx 47 mmx 8 mm
62306-2RS-C3
25 mmx 47 mmx 8 mm
63005-2RS-C3
25 mmx 47 mmx 8 mm
62205-2RS-C3
25 mmx 47 mmx 8 mm
62304-2RS-C3
25 mmx 47 mmx 8 mm
62204-2RS-C3
25 mmx 47 mmx 8 mm
63003-2RS-C3
25 mmx 47 mmx 8 mm
62303-2RS-C3
25 mmx 47 mmx 8 mm
63002-2RS-C3
25 mmx 47 mmx 8 mm
