TIMKEN 61808-2RZ-C3 Deep groove ball bearings
Also known as : 61808-2RZ-C3
- Inside Diameter: 40 mm
- Outside Diameter: 52 mm
- Width: 7 mm
- Basic dynamic load rating: 4.9 kN
- Basic static load rating: 4.2 kN
TIMKEN 61808-2RZ-C3

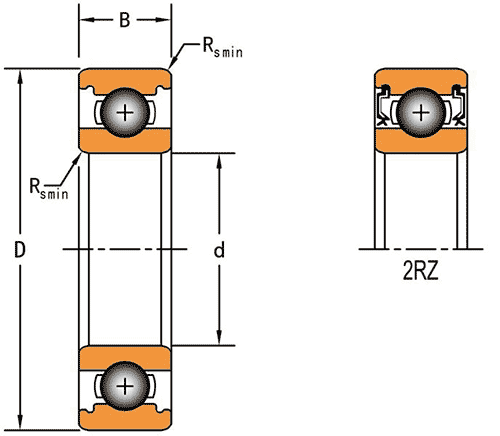

TIMKEN 61808-2RZ-C3 details
| Bearing Number | 61808-2RZ-C3 |
|---|---|
| Brand | TIMKEN |
| Type | Deep groove ball bearings |
| Clearance | C3 |
| Bore Size d | 40.000 mm |
| Features | Non-Contact Seals |
| Weight | 0.029 Kg |
| Outside Diameter D | 52.000 mm |
| Outside Ring Width B | 7.000 mm |
| Radius Rs min | 0.300 mm |
| Cr - Dynamic Load Rating | 4.9 kN |
| C0r - Static Load Rating | 4.2 kN |
| Grease Limiting Speed | 12000 rpm |
| Oil Limiting Speed | 14000 rpm |
TIMKEN 61808-2RZ-C3 bearing cross reference
302K
40 mmx 52 mmx 7 mm
301K
40 mmx 52 mmx 7 mm
62207-2RS-C3
40 mmx 52 mmx 7 mm
62306-2RS-C3
40 mmx 52 mmx 7 mm
63005-2RS-C3
40 mmx 52 mmx 7 mm
62205-2RS-C3
40 mmx 52 mmx 7 mm
62304-2RS-C3
40 mmx 52 mmx 7 mm
62204-2RS-C3
40 mmx 52 mmx 7 mm
63003-2RS-C3
40 mmx 52 mmx 7 mm
62303-2RS-C3
40 mmx 52 mmx 7 mm
63002-2RS-C3
40 mmx 52 mmx 7 mm
