NTN AC-6302LLB Deep groove ball bearings
Also known as : AC-6302LLB
- Inside Diameter: 15 mm
- Outside Diameter: 42 mm
- Width: 13 mm
- Basic dynamic load rating: 11.4 kN
- Basic static load rating: 5.45 kN
NTN AC-6302LLB
NTN AC-6302LLB details
| Part Number | AC-6302LLB |
|---|---|
| Brand | NTN |
| Mass | 0.079 kg |

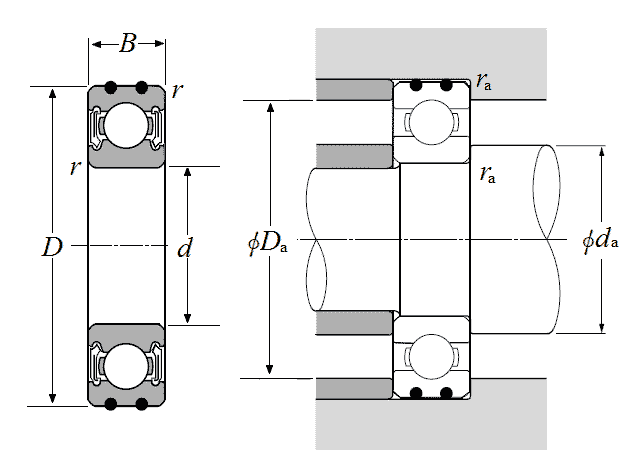

| Boundary dimensions (mm) | |
| Inner dia. (d) | 15 |
| Outer dia. (D) | 42 |
| Width (B) | 13 |
| Chamfer (rs_min) | 1 |
| Basic load ratings (kN) | |
| Dynamic (Cr) | 11.4 |
| Static (Cor) | 5.45 |
| Basic load ratings (kgf) | |
| Dynamic (Cr) | 1170 |
| Static (Cor) | 555 |
| Limiting speed (min-1) | |
| Grease | 17000 |
| Abutment and fillet dimensions (mm) | |
| da min | 20 |
| da max | 23 |
| Da max | 37 |
| ras max | 1 |
XinYouYa have NTN AC-6302LLB bearings in stock. AC bearings, have the same boundary dimensions as standard bearings with the addition of two O-rings imbedded on the outside surface of the outer ring.
