NSK 6008DDU Deep groove ball bearings
Also known as : 6008DDU, 6008LLU, 6008-2RS1, 6008-2RSR
- Inside Diameter: 40 mm
- Outside Diameter: 68 mm
- Width: 15 mm
- Basic dynamic load rating: 16.8 kN
- Basic static load rating: 11.5 kN
NSK 6008DDU

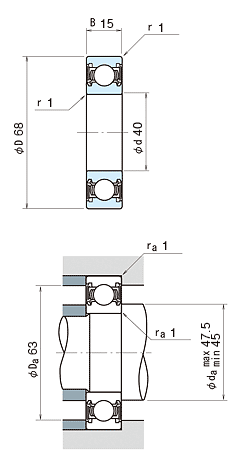

NSK 6008DDU details
| model | 6008DDU |
|---|---|
| d | 40 mm |
| D | 68 mm |
| B | 15 mm |
| rmin. | 1 mm |
| Cr | 16800 N |
| C0r | 11500 N |
| Limiting speeds | 6000 min-1 (Grease) |
| Mass | 0.19 kg (approx.) |
NSK 6008DDU bearing cross reference
302K
40 mmx 68 mmx 15 mm
301K
40 mmx 68 mmx 15 mm
62207-2RS-C3
40 mmx 68 mmx 15 mm
62306-2RS-C3
40 mmx 68 mmx 15 mm
63005-2RS-C3
40 mmx 68 mmx 15 mm
62205-2RS-C3
40 mmx 68 mmx 15 mm
62304-2RS-C3
40 mmx 68 mmx 15 mm
62204-2RS-C3
40 mmx 68 mmx 15 mm
63003-2RS-C3
40 mmx 68 mmx 15 mm
62303-2RS-C3
40 mmx 68 mmx 15 mm
63002-2RS-C3
40 mmx 68 mmx 15 mm
