NTN EC-6200ZZ Deep groove ball bearings
Also known as : EC-6200ZZ
- Inside Diameter: 10 mm
- Outside Diameter: 30 mm
- Width: 9 mm
- Basic dynamic load rating: 5.1 kN
- Basic static load rating: 2.39 kN
NTN EC-6200ZZ
NTN EC-6200ZZ details
| Part Number | EC-6200ZZ |
|---|---|
| Brand | NTN |
| Mass | 0.031 kg |

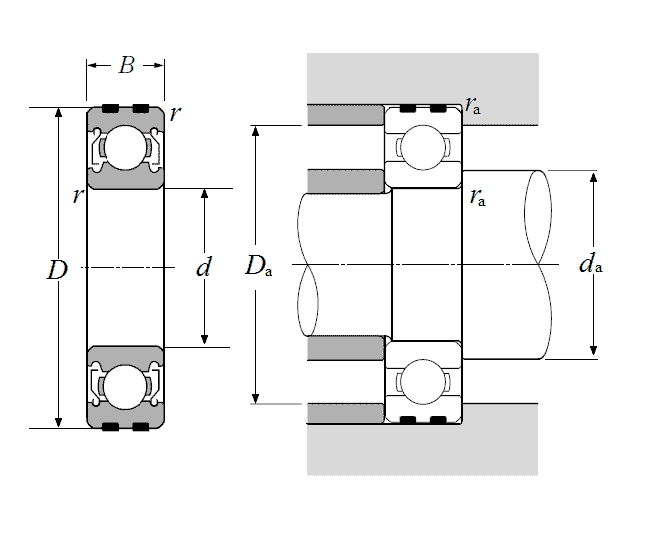

| Boundary dimensions (mm) | |
| Inner dia. (d) | 10 |
| Outer dia. (D) | 30 |
| Width (B) | 9 |
| Chamfer (rs_min) | 0.6 |
| Basic load ratings (kN) | |
| Dynamic (Cr) | 5.1 |
| Static (Cor) | 2.39 |
| Basic load ratings (kgf) | |
| Dynamic (Cr) | 520 |
| Static (Cor) | 244 |
| Limiting speed (min-1) | |
| Grease | 25000 |
| Abutment and fillet dimensions (mm) | |
| da min | 14 |
| da max | 16 |
| Da max | 26 |
| ras max | 0.6 |
XinYouYa have NTN EC-6200ZZ bearings in stock. The boundary dimensions of expansion compensating deep groove ball bearings are the same as for standard bearings, but formed high polymer material with a high expansion rate is provided in the grooves on the outer circumference of the outer ring.
