NTN EC-6000ZZ Deep groove ball bearings
Also known as : EC-6000ZZ
- Inside Diameter: 10 mm
- Outside Diameter: 26 mm
- Width: 8 mm
- Basic dynamic load rating: 4.55 kN
- Basic static load rating: 1.96 kN
NTN EC-6000ZZ
NTN EC-6000ZZ details
| Part Number | EC-6000ZZ |
|---|---|
| Brand | NTN |
| Mass | 0.019 kg |

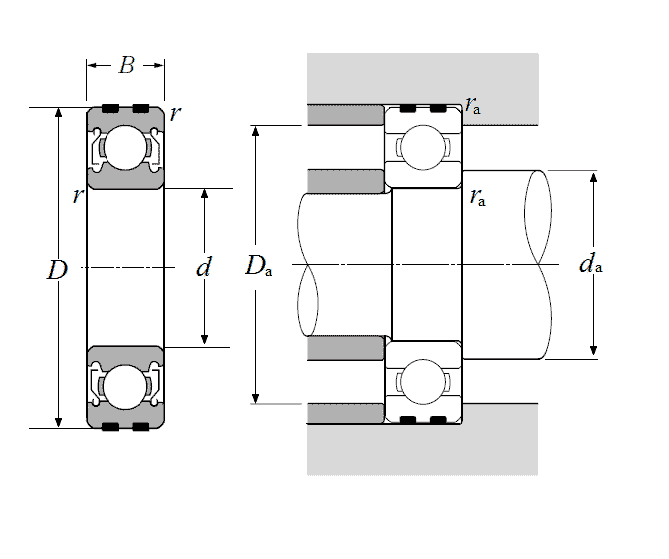

| Boundary dimensions (mm) | |
| Inner dia. (d) | 10 |
| Outer dia. (D) | 26 |
| Width (B) | 8 |
| Chamfer (rs_min) | 0.3 |
| Basic load ratings (kN) | |
| Dynamic (Cr) | 4.55 |
| Static (Cor) | 1.96 |
| Basic load ratings (kgf) | |
| Dynamic (Cr) | 465 |
| Static (Cor) | 200 |
| Limiting speed (min-1) | |
| Grease | 29000 |
| Abutment and fillet dimensions (mm) | |
| da min | 12 |
| da max | 13.5 |
| Da max | 24 |
| ras max | 0.3 |
XinYouYa have NTN EC-6000ZZ bearings in stock. The boundary dimensions of expansion compensating deep groove ball bearings are the same as for standard bearings, but formed high polymer material with a high expansion rate is provided in the grooves on the outer circumference of the outer ring.
