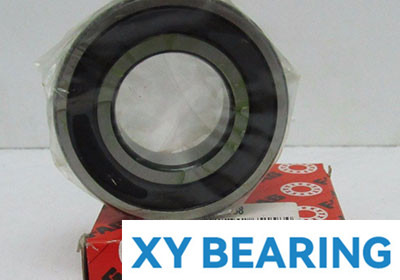

FAG 6014-2RSR

FAG 6014-2RSR Deep groove ball bearings

Also known as : 6014-2RSR

Inside Diameter: 70 mm
Outside Diameter: 110 mm
Width: 20 mm
Basic dynamic load rating: 40.5 kN
Basic static load rating: 31 kN

FAG 6014-2RSR

FAG 6014-2RSR details

d	70 mm
D	110 mm
B	20 mm
D₂	100 mm
D_{a max}	104 mm
d₁	82,8 mm
d_{a min}	76 mm
r_{a max}	1 mm
r_min	1,1 mm
m	0,64 kg	Mass
C_r	40500 N	Basic dynamic load rating, radial
C_0r	31000 N	Basic static load rating, radial
C_ur	1850 N	Fatigue limit load, radial
n_G	3250 1/min	Limiting speed
f₀	15,6	Calculation factor

FAG 6014-2RSR bearing cross reference

302K
70 mmx 110 mmx 20 mm

301K
70 mmx 110 mmx 20 mm

62207-2RS-C3
70 mmx 110 mmx 20 mm

62306-2RS-C3
70 mmx 110 mmx 20 mm

63005-2RS-C3
70 mmx 110 mmx 20 mm

62205-2RS-C3
70 mmx 110 mmx 20 mm

62304-2RS-C3
70 mmx 110 mmx 20 mm

62204-2RS-C3
70 mmx 110 mmx 20 mm

63003-2RS-C3
70 mmx 110 mmx 20 mm

62303-2RS-C3
70 mmx 110 mmx 20 mm

63002-2RS-C3
70 mmx 110 mmx 20 mm

62302-2RS-C3
70 mmx 110 mmx 20 mm
