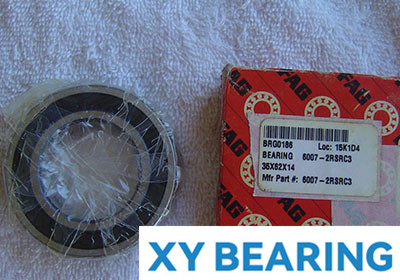

FAG 6007-2RSR-C3 Deep groove ball bearings
Also known as : 6007-2RSR-C3
- Inside Diameter: 35 mm
- Outside Diameter: 62 mm
- Width: 14 mm
- Basic dynamic load rating: 17 kN
- Basic static load rating: 10.3 kN
FAG 6007-2RSR-C3
FAG 6007-2RSR-C3 details
| d | 35 mm | |
|---|---|---|
| D | 62 mm | |
| B | 14 mm | |
| D2 | 55,4 mm | |
| Da max | 57,4 mm | |
| d1 | 43,2 mm | |
| da min | 39,6 mm | |
| ra max | 1 mm | |
| rmin | 1 mm | |
| m | 0,163 kg | Mass |
| Cr | 17000 N | Basic dynamic load rating, radial |
| C0r | 10300 N | Basic static load rating, radial |
| Cur | 550 N | Fatigue limit load, radial |
| nG | 6200 1/min | Limiting speed |
| f0 | 14,9 | Calculation factor |
FAG 6007-2RSR-C3 bearing cross reference
302K
35 mmx 62 mmx 14 mm
301K
35 mmx 62 mmx 14 mm
62207-2RS-C3
35 mmx 62 mmx 14 mm
62306-2RS-C3
35 mmx 62 mmx 14 mm
63005-2RS-C3
35 mmx 62 mmx 14 mm
62205-2RS-C3
35 mmx 62 mmx 14 mm
62304-2RS-C3
35 mmx 62 mmx 14 mm
62204-2RS-C3
35 mmx 62 mmx 14 mm
63003-2RS-C3
35 mmx 62 mmx 14 mm
62303-2RS-C3
35 mmx 62 mmx 14 mm
63002-2RS-C3
35 mmx 62 mmx 14 mm
