TIMKEN 6411-N Deep groove ball bearings
Also known as : 6411-N
- Inside Diameter: 55 mm
- Outside Diameter: 140 mm
- Width: 33 mm
- Basic dynamic load rating: 100.7 kN
- Basic static load rating: 62.4 kN
TIMKEN 6411-N

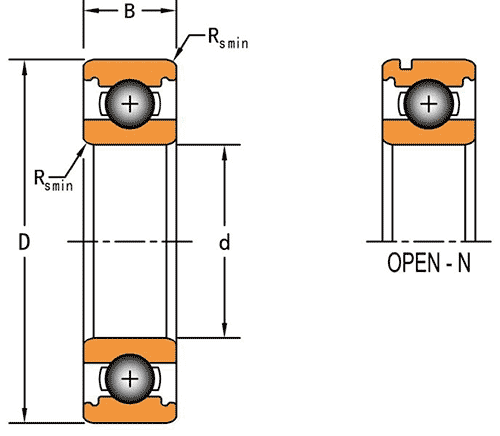

TIMKEN 6411-N details
| Bearing Number | 6411-N |
|---|---|
| Brand | TIMKEN |
| Type | Deep groove ball bearings |
| Clearance | C0 (Normal) |
| Bore Size d | 55.000 mm |
| Features | O.D. Groove |
| Weight | 2.3 Kg |
| Outside Diameter D | 140.000 mm |
| Outside Ring Width B | 33.000 mm |
| Radius Rs min | 2.100 mm |
| Cr - Dynamic Load Rating | 100.7 kN |
| C0r - Static Load Rating | 62.4 kN |
| Grease Reference Speed | 6300 rpm |
| Oil Reference Speed | 9100 rpm |
TIMKEN 6411-N bearing cross reference
302K
55 mmx 140 mmx 33 mm
301K
55 mmx 140 mmx 33 mm
62207-2RS-C3
55 mmx 140 mmx 33 mm
62306-2RS-C3
55 mmx 140 mmx 33 mm
63005-2RS-C3
55 mmx 140 mmx 33 mm
62205-2RS-C3
55 mmx 140 mmx 33 mm
62304-2RS-C3
55 mmx 140 mmx 33 mm
62204-2RS-C3
55 mmx 140 mmx 33 mm
63003-2RS-C3
55 mmx 140 mmx 33 mm
62303-2RS-C3
55 mmx 140 mmx 33 mm
63002-2RS-C3
55 mmx 140 mmx 33 mm
