TIMKEN 6307-2RS-NR Deep groove ball bearings
Also known as : 6307-2RS-NR
- Inside Diameter: 35 mm
- Outside Diameter: 80 mm
- Width: 21 mm
- Basic dynamic load rating: 33.4 kN
- Basic static load rating: 19.2 kN
TIMKEN 6307-2RS-NR

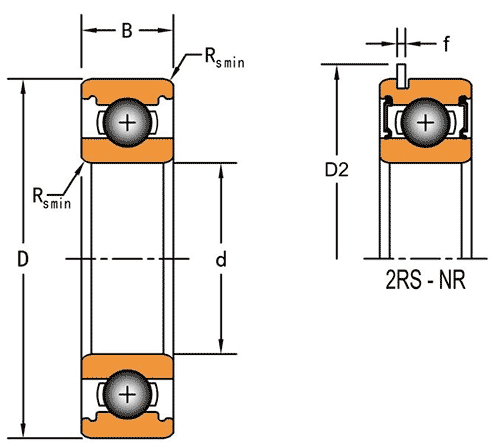

TIMKEN 6307-2RS-NR details
| Bearing Number | 6307-2RS-NR |
|---|---|
| Brand | TIMKEN |
| Type | Deep groove ball bearings |
| Clearance | C0 (Normal) |
| Bore Size d | 35.000 mm |
| Features | Contact Seals With Snap Ring |
| Weight | 0.450 Kg |
| Outside Diameter D | 80.000 mm |
| Outside Ring Width B | 21.000 mm |
| Radius Rs min | 1.500 mm |
| Snap Ring Diameter D2 max | 86.600 mm |
| Snap Ring Width f max | 1.700 mm |
| Cr - Dynamic Load Rating | 33.4 kN |
| C0r - Static Load Rating | 19.2 kN |
| Grease Reference Speed | 9300 rpm |
| Oil Reference Speed | 13000 rpm |
TIMKEN 6307-2RS-NR bearing cross reference
302K
35 mmx 80 mmx 21 mm
301K
35 mmx 80 mmx 21 mm
62207-2RS-C3
35 mmx 80 mmx 21 mm
62306-2RS-C3
35 mmx 80 mmx 21 mm
63005-2RS-C3
35 mmx 80 mmx 21 mm
62205-2RS-C3
35 mmx 80 mmx 21 mm
62304-2RS-C3
35 mmx 80 mmx 21 mm
62204-2RS-C3
35 mmx 80 mmx 21 mm
63003-2RS-C3
35 mmx 80 mmx 21 mm
62303-2RS-C3
35 mmx 80 mmx 21 mm
63002-2RS-C3
35 mmx 80 mmx 21 mm
